Side Entry Robots

Side Entry Robots

Brand :KEMANS

Product origin :GUANG DONG CHINA

Delivery time :30 Working days

Supply capacity :80 sets/month

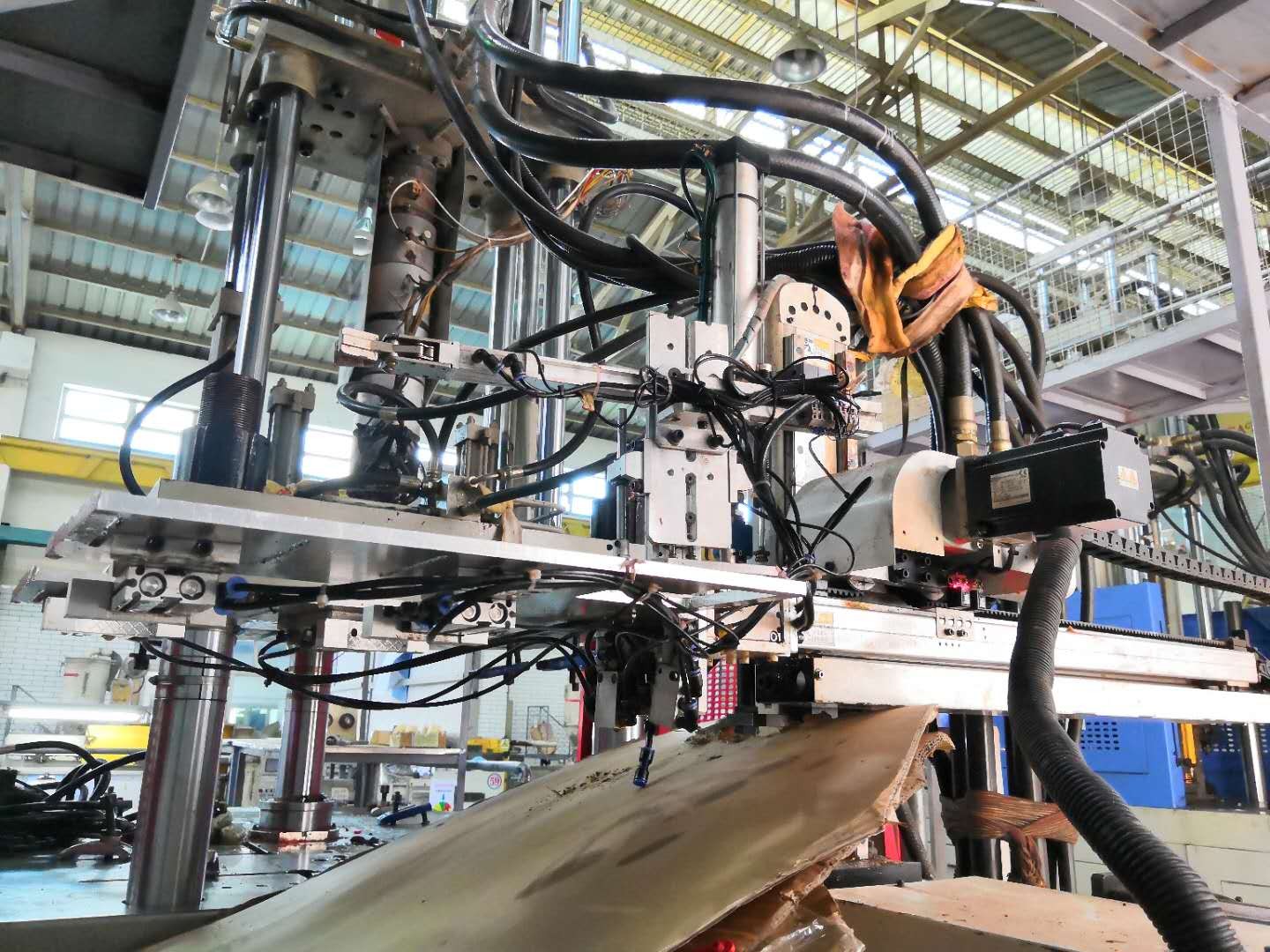

Side Entry Robot is also called vertical robot,side entry is a kind of swing arm application suitable for precise and rapid removal of sprue and runner on vertical molding machines,and place them into granulator for recycling.Vertical robot is specialy good to vertical injection molding/insert molding.

Common Specification:

Power Supply		Air Pressure(Bar)	Max Air Pressure(Bar)	Drive System	Swing Angle(Degree)	Controller Box	Language
AC220V±10V, 50/60HZ		5Khf/cm², 0.49Mpa	8Khf/cm2, 0.78Mpa	Pneumatic/AC Servo	50-90	JE 30	English/ Chinese

General Spesifications:

Model	IMM(Ton)	Vertical Stroke	Crosswise Stroke(mm)	Max. Loading(Kg)	Weight(Kg)
KMSP550W	50-150	550	120	2	45/55
KMSP650W	80-200	650	120	2	46/56
KMSP750W	120-200	750	120	2	47/57
