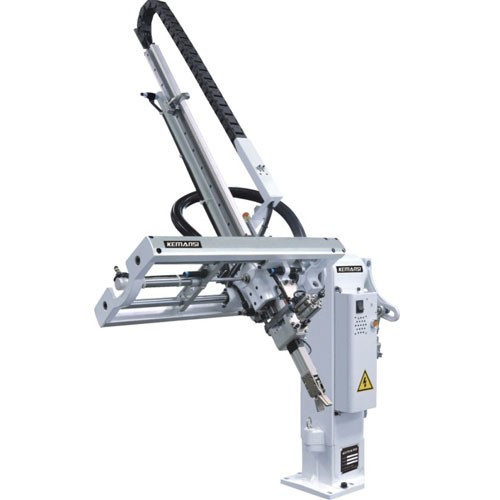

Sprue Picking Swing Arm Robots

Sprue Picking Swing Arm Robots

Brand :KEMANS

Product origin :GUANG DONG CHINA

Delivery time :30 Working days

Supply capacity :80 sets/month

Econimical Swing Arm Robots is usually equiped with a compact design pneumatic cylinder driven arm with multiprogramming operating system. It's designed for sprue picking and parts removal on plastic injection molding machines from 15 tons to 250 tons, and don't have high requirement for product or sprue taking out speed.

Specifications:

Power Supply		Air Pressure(Bar)	Max Air Pressure(Bar)	Drive System	Swing Angle(Degree)	Controller System	Language
AC220V±10V, 50/60HZ		5Khf/cm², 0.49Mpa	8Khf/cm2, 0.78Mpa	Servo Driven pneumatic	90° Fixed	YB-HC	English/Chinese

General Specifications:

Model	IMM(Ton)	Travers Stroke(mm)	Main Arm(mm)	Assist Arm(mm)	Main Arm(mm)	Assist Arm(mm)	Max. Loading(Kg)	Weight(Kg)
KMSA-550	50-150	1200/1000	550	550	150	100	2.5	125
KMSA-650	80-200	1200/1000	650	650	150	100	2.5	135
KMSA-750	120-250	1400/1200	750	750	200	150	2.5	145
KMSA-850	180-250	1400/1200	850	850	150	150	2.5	150

Out Dimensions:

Model	A	B	C	D	E(Min)	F(Max)
Model	I/W	I/W	I/W	I/W	I/W	I/W
KMSA-550	1440/975	1875	1010/1250	180/200	100 /160	550/800
KMSA-650	1500 /1035	1875	1010/1250	180/200	100 /160	550/800
KMSA-750	1620/1100	2075	1010/1250	180/200	100 /160	550/800
KMSA-850	1160	2075	1250	200	160	800

Out dimensions:

Model	A	B	C	D	E(Min)	F(Max)
Model	I/W	I/W	I/W	I/W	I/W	I/W
KMSA-550	1440/975	1875	1010/1250	180/200	100 /160	550/800
KMSA-650	1500 /1035	1875	1010/1250	180/200	100 /160	550/800
KMSA-750	1620/1100	2075	1010/1250	180/200	100 /160	550/800
KMSA-850	1160	2075	1250	200	160	800
